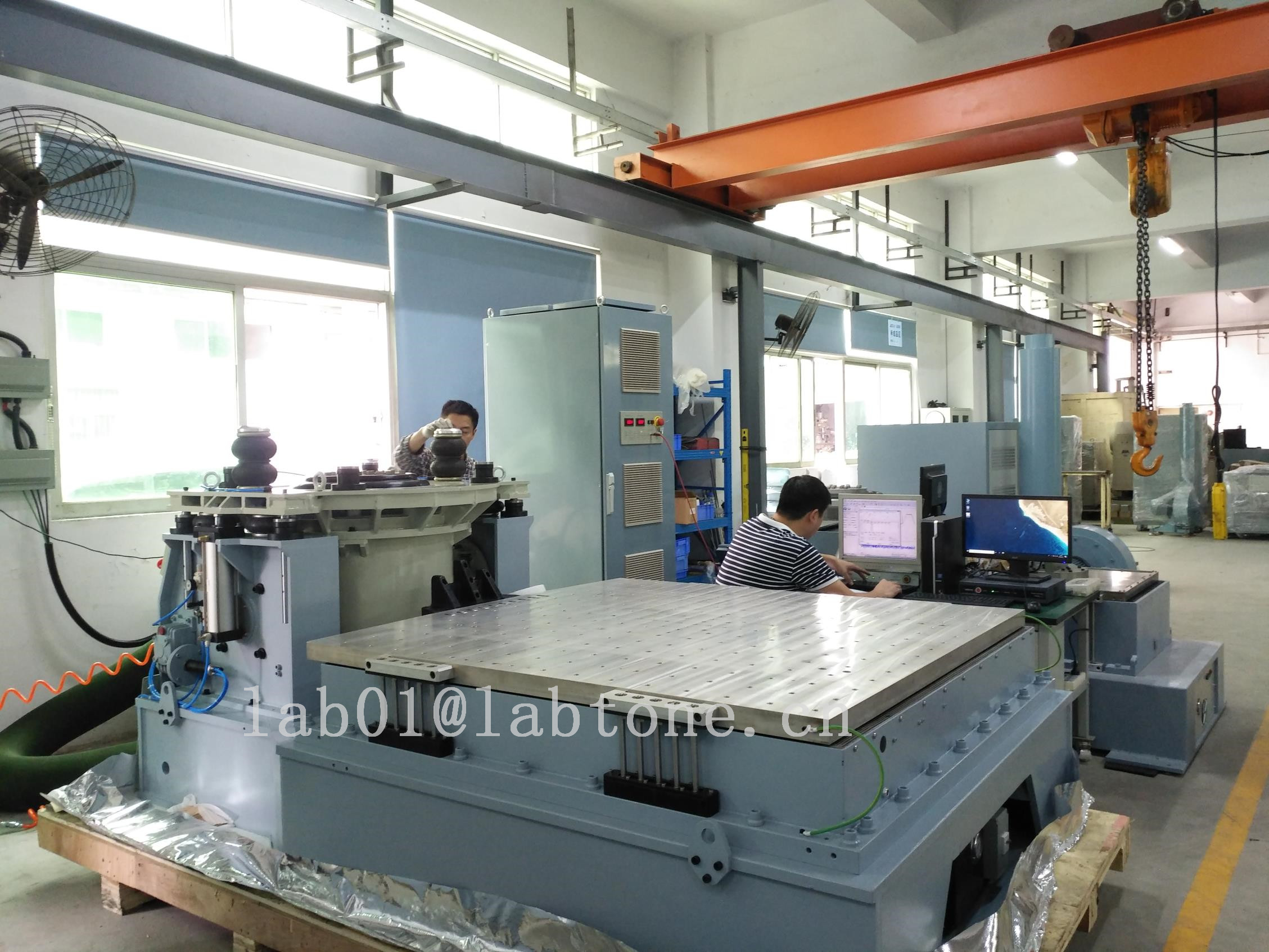

ISTA 6A Amazon Vibration Test Machine Overall Grms Levels of 0.53G and 0.46G
ISTA_Project_6-Amazon.com-SIOC_18-18.pdf
ISTA_Project_6-Amazon.com-OB_18-18.pdf
Introduction:
Vibration Testing is performed to determine if a product can withstand the rigors of its intended use. Labtone is a professional manufacturer for high-performance vibration shaker including electrodynamic shakers and repetitive shock vibration tables.
We can customize vibration test system to meet your specific needs. Choose from a number of custom options for your electrodynamic vibration shaker.
Technical Specification for EV240
| Shaker Specifications VG4000-50 |
| Peak Sine (Pk) | 4000Kg.f peak (40KN) |
| Random (RMS) | 4000Kg.f r.ms (40KN) @ISO5344 |
| Shock (Pk) | 12000Kg.f peak (120KN) @6ms |
| Usable Frequency | DC～3000Hz |
| Maximum Displacement (p-p) | 51mm (2inch) |
| Max. velocity | 2m/s |
| Max. acceleration | Sine:100G (980 m/s2)；Random: 60G (588 m/s2) |
| Vertical Load Support | 500 kg |
| Body Suspension Natural
Frequency (Thrust Axis) | Less than 2.5 Hz |
| Armature Diameter | Ф440 mm |
| Armature Weight | 36kg |
| Fundamental Resonance
Frequency (Bare table) | 2,500 Hz (nom.) +/- 5% |
| Load Attachment
Points (Standard) | 16 stainless steel M10 Inserts |
| Stray Flux Density | ＜10gauss |
| Allowable partial force | 500.N.M |
| Shaker dimensions | 1283mmL×1000mmD×1138mmH |
| Weight of Shaker | About 2600Kg |
| Power Amplifier Specifications LA403L |
| Rated Output Capacity | 40KVA(120Vrms/380Arms) |
| Signal to Noise Ratio | Greater than 65 dB |
| Amplifier Efficiency | Greater than 90% |
| Amplifier Overall Dimensions | 650mmL×920mmD×2100mmH |
| Weight of Amplifier | About480Kg |
| Interlock Protection | ●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel |
| Shaker controller Specifications |
| Hardware | 2 Analog Input Channels, 1 Drive Channel,102.4 kHz Sampling Rate, 40kHz Frequency Range,>120dB Dynamic range,24-bit ADC/DAC, Centralized 32-bit floating DSP processing and low-noise design , > 90 dB Random control dynamic range , Windows O/S GUI Ethernet connectivity, graphic interface.-20~60℃ Working Temperature Fanless Structure to Reduce the BacKground Noise. |
| Application software | ●Base Random,●Swept Sine,●Classic Shock |
| PC Configuration: | ● PC(3.6GHz CPU 8GB 1TB 1000Mbps Ethernet port./USB port /DVD-RW/ Microsoft Windows 10 OS
Microsoft Word / Excel and PDF are recommended.(options) |
| Control Accelerometers | ●Mode: Lab-24100
High sensitivity Charge accel ,10M, PVC M5 coaxial plug to BNC plug low noise cable ,0.5—7kHz ,30pC/g ,1500g M5 side Conn,Ground isolation,-50℃ to 120℃,25gn, HEX16x28mm.H |
Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.
Features:
- Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
- U-type spring ,rollers and linear bearing for strong resistance of deflecting load
- Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
- Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
- Able to complete sine ,random , impact environmental tests
- This system requires voltage fluctuation, ≤±10%
- This system requires Grounding resistance, ≤4Ω
- High reliability, especially suitable for long-time operation
Our Services:
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
Accept OEM, Design service,Buyer label
|
