New Design Laboratory Test Equipment Bump Tester For Electronic Components Impact Test

Product Categories
Labtone Test Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

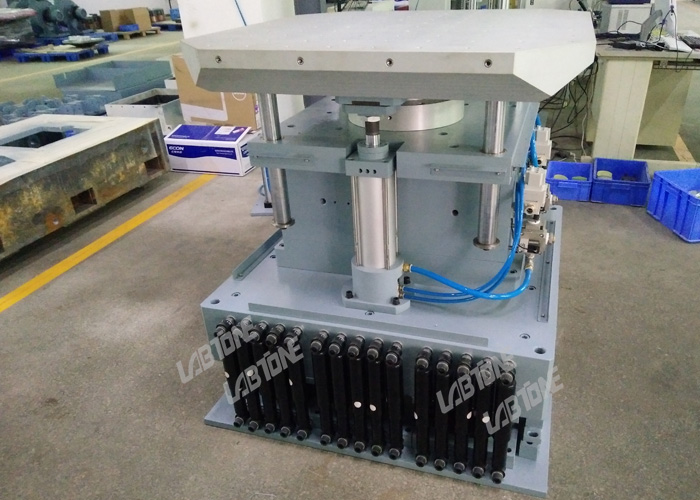

New Design Laboratory Test Equipment Bump Tester For Electronic Components Impact Test

  • 1
  • 2

Brand Name : LABTONE

Model Number : SKM500

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 40 working days

Packaging Details : international wooden case

Product Name : Bump Tester

Payload : 50kg

Wave Form : Haf sine pulse

Acceleration Range : 5-120 G

Pulse Duration : 6-18ms

Bump Repetition Frequency : 1-120

Drop Height Range : 5-180mm

Max Velocity Variation : 2.2m/s

Table Size : 500*700 mm

Contact Now

New Design Laboratory Test Equipment Bump Tester For Electronic Components Impact Test

Applicable areas

Components and other electronic and electrical products may experience repeating impact during transportation or use. Bump test can be used as a method to ensure the design structure is satisfying or as a quality assurance method. Specimen will experience regular peak acceleration and continuous impact with standard pulse during the bump test.

Speicifications

Model SKM500 SKM700 SKM800 SKM1000
Table size(mm) 500*700 700*800 800*800 1000*1000
Payload(kg) 50 100 200 500
Wave form Half sine pulse
Acceleration range(G) 5-120 5-100 5-100 5-80
Pluse duration(ms) 6--18
Bump repetition frequency 1-120 1-120 1-120 1-80
Drop height range 5-120mm 5-120mm 5-120mm 5-180mm
Max velocity variation 2.2m/s 2.2m/s 2.6m/s 2.8m/s
Machine dimension(mm) 750*660*800 900*900*800 900*960*800 1200*1150*860
Machine weight(kg) 1000 1260 2160 3660
Power & Air supply AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder
Standards GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc

Packaging & Shipping

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc

Services

Pre-sales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

Factory

New Design Laboratory Test Equipment Bump Tester For Electronic Components Impact Test
