Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform

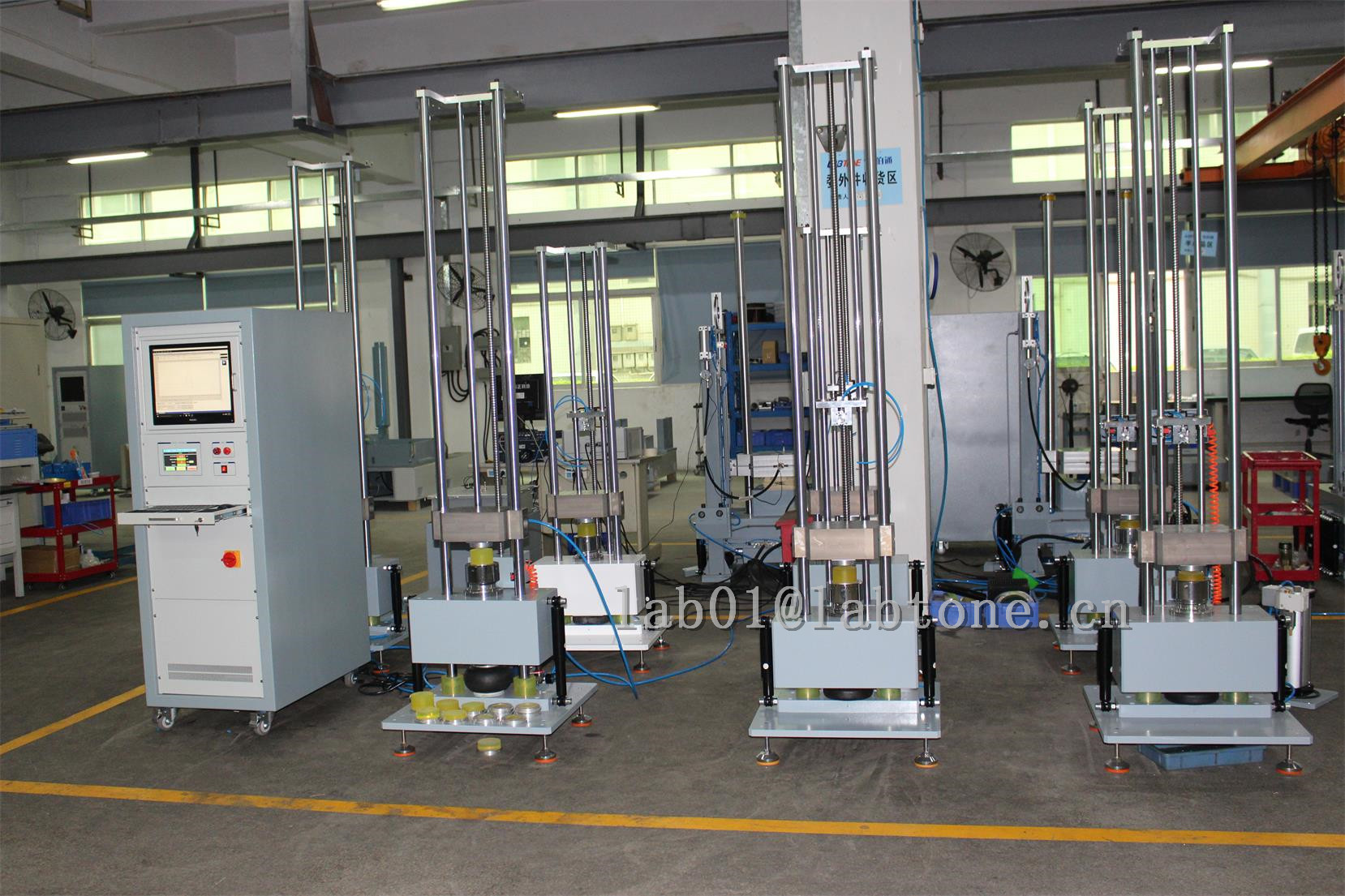

Shock Test System
Products are inevitably affected by impact, bump, free fall, tumbling, etc. during production, transportation, loading and unloading as well as during the use of the products.
Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pulse or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.
Parameters:
| Model | HSKT10 | HSKT30 |
| Table size (mm) | 200x250 | 300x300 |
| Shock pulse | Half sine |
| Maximum Specimen Weight(Kg) | 10 | 30 |
| Acceleration Range(G) | 20 ~ 2000 | 20 ~ 1500 |
| Pulse Duration (ms) | 0.2~18 | 0.5~30 |
| Machine Dimension(mm) | 660x700x2380 | 720x680x1890 |
Utility
Requirements | AC220V 50Hz 5A,Air pressure: more than 0.5Mpa |
| Machine Weight(Kg) | 820 | 650 |
Features
- Free drop type shock tester using hydraulic lifting and HP fluid braking;
- Use of pneumatic-hydraulic boosting and strong friction brake to prevent secondary shock braking;
- Shock measurement device: single-channel data acquisition, simultaneous acceleration data measurement, storage, report printing, data callback, database management of two channels.
- Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.
- Availability for equivalent drop test of packing boxes.
Introduction to the shock measuring system and its features
The system conforms to MIL-STD-810, GJB-150-18-86 and IEC68-2-27 standards, and has accurate and prompt shock wave capture capability. The max. sampling rate is 1MHz, therefore, you need not worry about omission of minor shock events.
The system is also an integrated solution, you need not be busy with waveform viewing and recording, as the system can capture shock event and generate report, more importantly, the system can provide you with shock response spectrum analysis (SRS) to facilitate effective assessment of potential damage from shock pulse to the actual system. At last, the auxiliary analysis on force deformation and shock response can enable to understand more details about the shock results.
Warranty:
One year limited warranty with lifetime support; extended warranty available upon request at additional cost.
After-sale service:
On site installation and trainning are avaiable at extra cost.
Technical support
Certificate: China official third-party calibration report / CE Certification
Customer Service
Service timeliness
When a fault report is received from customer〈including telephone, fax and email〉:
LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.
